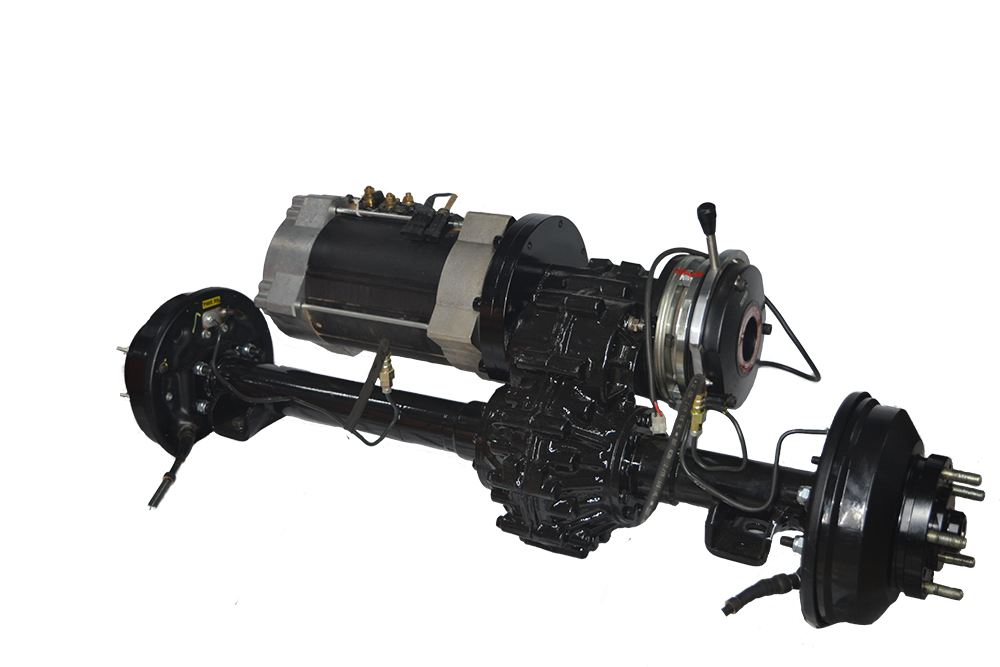

transaxle drives

WE TAKE PRIDE IN CARRYING YOUR BURDEN

Electromagnetic Brake

Electromagnetic brake is an additional feature for all material handling equipments that serves as an emergency brake. Our range varies from 60 to 150 Nm

PMAC / DC Motor

PMAC motor with regenarative motor and DC motor be fitted in house.

Drum / Disc Brake

Double side spline with radial shaft sealed for direct wheel flange mounting.

TAD Variants

1. TAD16
Rated power : 3-19 kW
Rated voltage: - 24-80v
Max o/p torque: - 1600 Nm
Maximum i/p speed: 7200 rpm
Gear ratio: 5-60
Motor type: DC or PMAC
Gear quality: DIN 6 to DIN 3
Differential type: Bevel
PMAC motor - regenerative braking
AC electronic speed controller
Efficiency: 94%
Brake: Electromagnetic Brake
Brake Torque: 20-120 Nm
Housing: Casting / Aluminium
Lubrication: Kluebersynth GE4 75 W90
Axle: Drawing steel
brochure
2. TAD03
Rated power : 0.3 -2 kW
Rated voltage: - 24-48v
Max o/p torque: - 300 Nm
Maximum i/p speed: 3000 rpm
Gear ratio: 6-30
Motor type: DC or PMAC
Gear quality: DIN 6 to DIN 3
Differential type: Bevel
PMAC motor - regenerative braking
AC electronic speed controller
Efficiency: 94%
Brake: Electromagnetic Brake
Brake Torque: 5-20 Nm
Housing: Casting / Aluminium
Lubrication: Kluebersynth GE4 75 W90
Axle: Drawing steel
brochure
