burden carriers

WE TAKE PRIDE IN CARRYING YOUR BURDEN

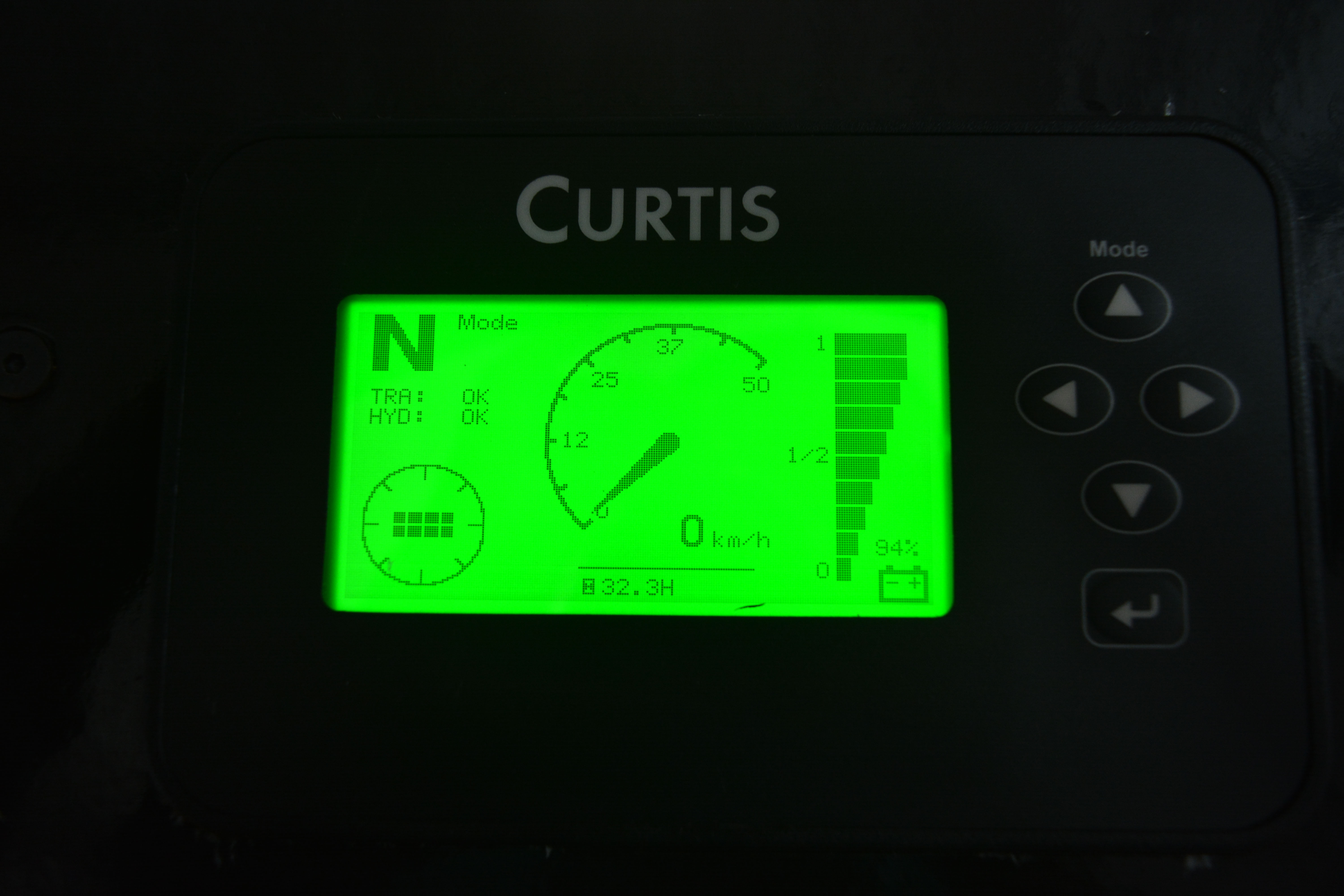

Display

The Ac controller is paired with multifunctional display showing precise speed, battery state, hour meter, odometer and the fault warnings. The parameters in the display can be password protected.

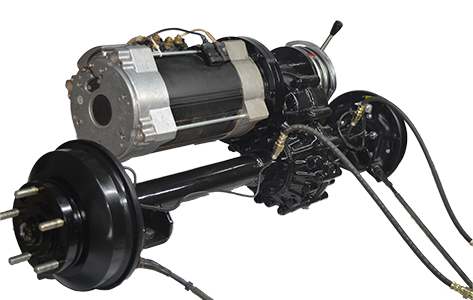

Transaxle drive with PMAC motor

Powerful, silent and efficient transaxle drive is the heart of the KLC vehicle. Electromagnetic brakes with manual hand release provides more safety along with high braking torque drum brakes.

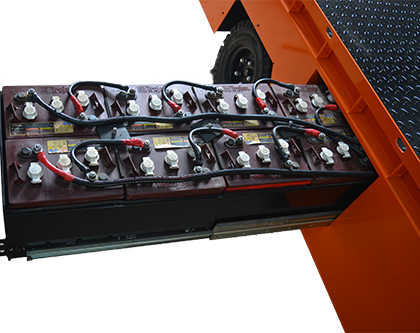

Roll-out battery cabin

Roll-out battery cabin reduces effort and time taken for battery changing and inspection. Keeps vehicle running round the clock.

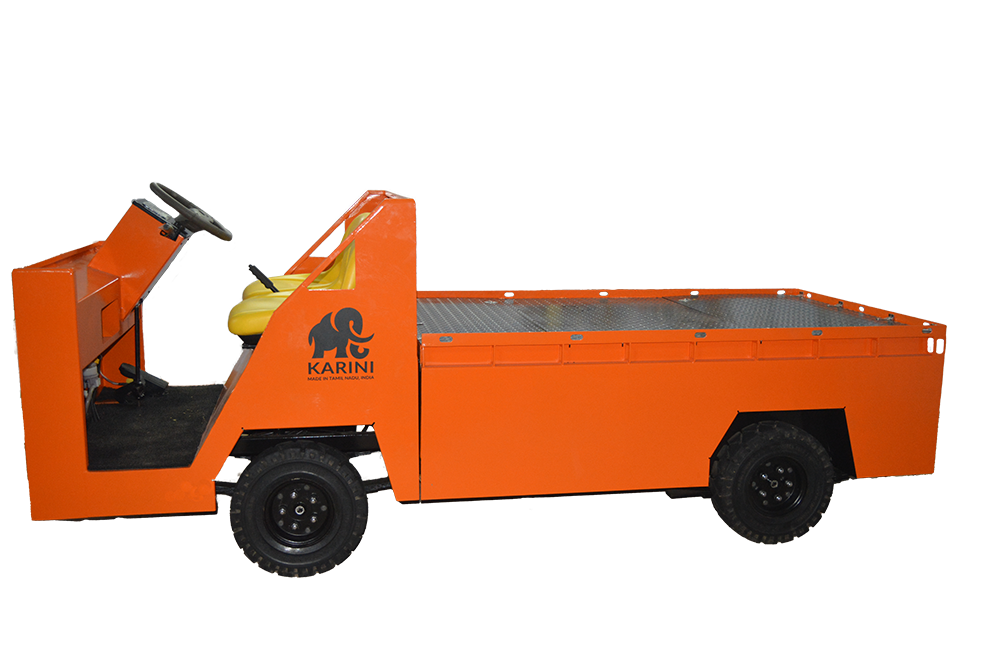

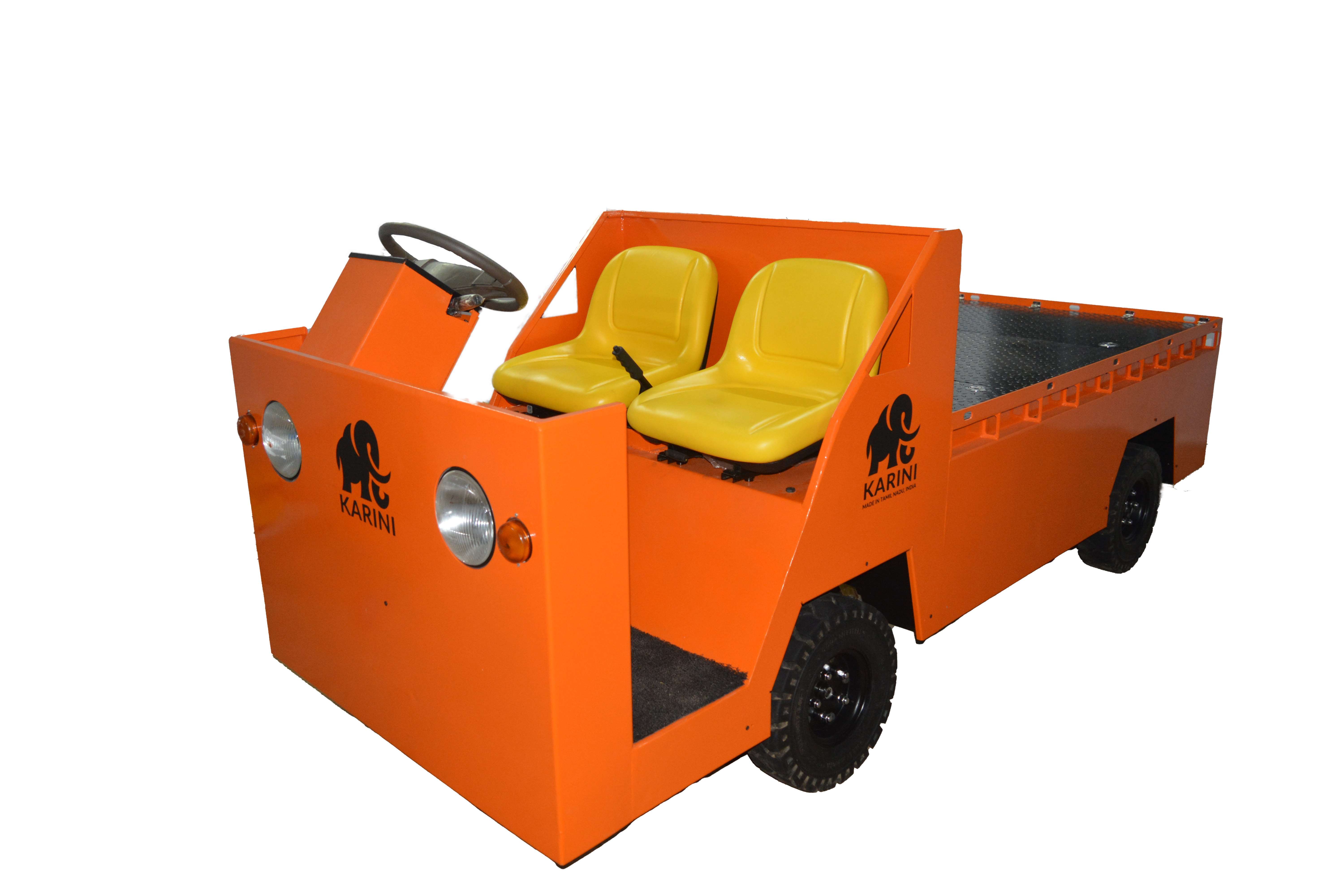

KLC Variants

1. KLC36L
Load - 700 kg
Tow - 3000 kg
Speed - 10 to 12 Km/h
Turning radius - 3.2 m
Passenger - 2
Power - 5.5 kW
Volt - 36V (6X6)
Capacity - 225 Ah@20hrs
PMAC motor - regenerative braking
AC electronic speed controller
TAD16 Helical and Bevel differential gear unit
5.7 X 8 LRD pneumatic/solid types
Color - Safety Orange/Yellow/White
2 bucket seats with slide adjustments
Safety - Dead man seat alarm, Reverse alarm and Horn
Battery - Deep Cycle flooded
brochure
2. KLC48L
Load - 700 kg
Tow - 3000 kg
Speed - 10 to 12 Km/h
Turning radius - 3.2 m
Passenger - 2
Power - 8 kW
Volt - 48V (8X6)
Capacity - 225 Ah@20hrs
PMAC motor - regenerative braking
AC electronic speed controller
TAD16 Helical and Bevel differential gear unit
5.7 X 8 LRD pneumatic/solid types
Color - Safety Orange/Yellow/White
2 bucket seats with slide adjustments
Safety - Dead man seat alarm, Reverse alarm and Horn
Battery - Deep Cycle flooded
brochure
3. KLC36
Load - 1000 kg
Tow - 3000 kg
Speed - 10 to 12 Km/h
Turning radius - 3.2 m
Passenger - 2
Power - 5.5 kW
Volt - 36V (6X6)
Capacity - 225 Ah@20hrs
PMAC motor - regenerative braking
AC electronic speed controller
TAD16 Helical and Bevel differential gear unit
5.7 X 8 LRD pneumatic/solid types
Color - Safety Orange/Yellow/White
2 bucket seats with slide adjustments
Safety - Dead man seat alarm, Reverse alarm and Horn
Battery - Deep Cycle flooded
brochure
4. KLC48
Load - 1000 kg
Tow - 3000 kg
Speed - 10 to 12 Km/h
Turning radius - 3.2 m
Passenger - 2
Power - 8 kW
Volt - 48V (8X6)
Capacity - 225 Ah@20hrs
PMAC motor - regenerative braking
AC electronic speed controller
TAD16 Helical and Bevel differential gear unit
5.7 X 8 LRD pneumatic/solid types
Color - Safety Orange/Yellow/White
2 bucket seats with slide adjustments
Safety - Dead man seat alarm, Reverse alarm and Horn
Battery - Deep Cycle flooded
brochure
Some image
